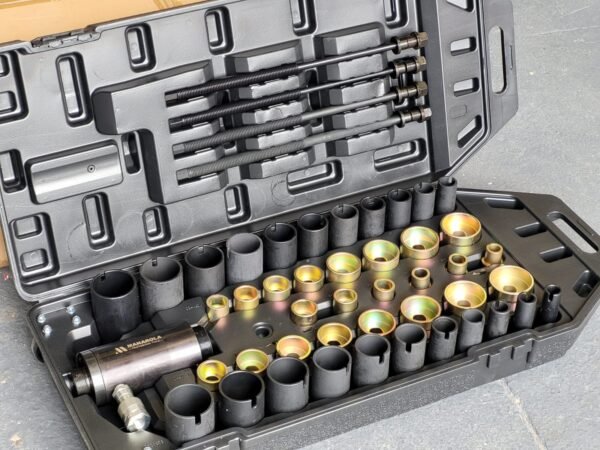

Manarola 20 Ton Hydraulic Bush & Bearing Removal Tool Set With Hollow Ram

• For removing and instaling bushings and bearings
• 17-tan pull type hydraulic cylinder provides effort- and time-saving removing and installing works
• Includes 4 spindles M10 xP1.5, M12 xP178, M14 x P2.0 and M16 x P20
• Sleeve sizes: 18-60 mm(ID) and 26-68 mm (OD) with 2 mm increments
• 48PCS

Specification:

1. Hydraulic Cylinder  20 Ton
2. Hydraulic tube adapter
3. Male Connector for ram
4. M10 x P1.50 Spindle, Sliding Nut & Fixing Nut
5. M12 x P1.75 Spindle, Sliding Nut & Fixing Nut
6. M14 x P2.00 Spindle, Sliding Nut & Fixing Nut
7. M16 x P2.00 Spindle, Sliding Nut & Fixing Nut
8. Short Socket 40 mm in Length ( 21 Piece )
9. Long Socket 110 mm in Length ( 21 Piece )

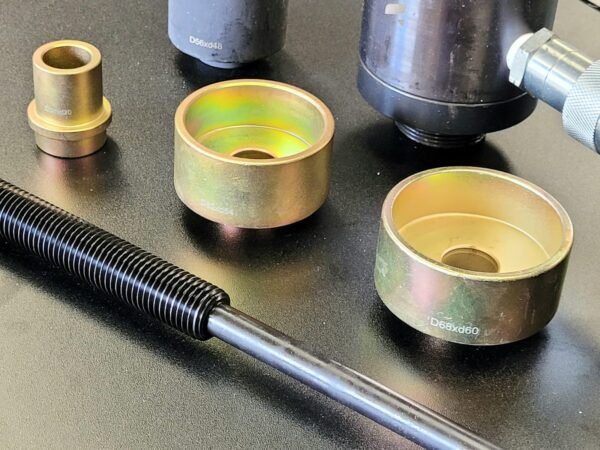

Socket Sizes OD x ID mm

1. Φ26 x 18mm, Φ28 x  20 mm, Φ30 x 22 mm
2. Φ32 x 24mm, Φ34 x  26 mm, Φ36 x 28 mm
3. Φ38 x 30mm, Φ40 x  32 mm, Φ42 x 34 mm
4. Φ44 x 36mm, Φ46 x  38 mm, Φ48 x 40 mm
5. Φ50 x 42mm, Φ52 x  44 mm, Φ54 x 46 mm
6. Φ56 x 48mm, Φ58 x  50 mm, Φ60 x 52 mm
7. Φ62 x 54mm, Φ64 x  56 mm, Φ66 x 58 mm
8. Φ68 x 60mm

When removing an old bushing from a control arm, installing a new bushing into a control arm two sockets are required. One acts as a pushing socket and the other as a recieving socket. The outer diameter of the pushing socket should be 2 mm smaller than the bushing. The inner diameter of the recieving socket should be 2 mm larger than the bushing.
